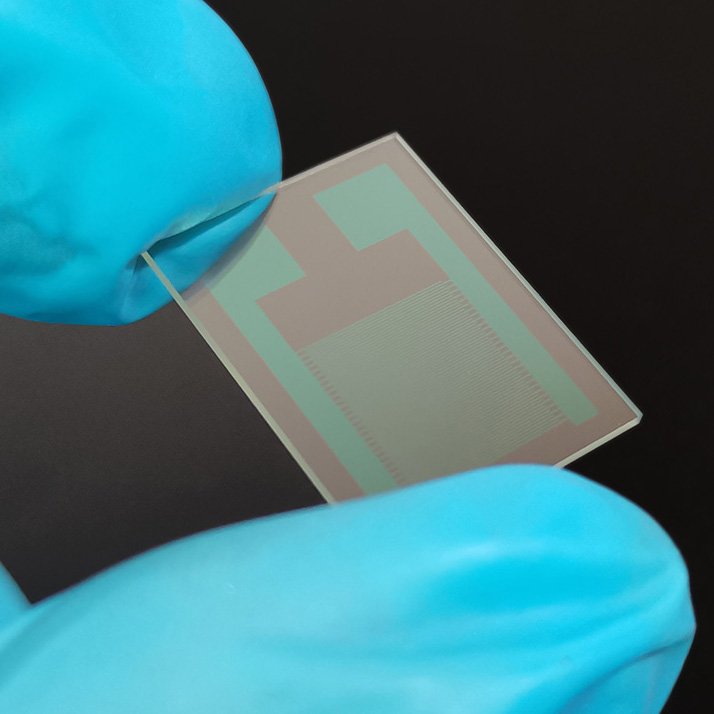

IDE（Interdigital Electrode) on ito Glass 80μm
Sheet resistance ：≤ 6 ohm/sq(4 point probe)
The conductor layer structure : Indium-Tin-Oxide (ITO) film
The thickness of ITO film : 2100Å ±50Å
Substrate: Sodium calcium glass size : 15mm×20mm thickness: 0.7mm
Light transmittance : >84%
Coating process : Magnetron sputtering
Line width : 80μm
Line spacing : 80μm
Finger length : 8.5mm
Interdigital quantity : 30 pairs
Packing : 12 pieces/box
Sheet resistance ：≤ 6 ohm/sq(4 point probe)
The conductor layer structure : Indium-Tin-Oxide (ITO) film
The thickness of ITO film : 2100Å ±50Å
Substrate: Sodium calcium glass size : 15mm×20mm thickness: 0.7mm
Light transmittance : >84%
Coating process : Magnetron sputtering
Line width : 80μm
Line spacing : 80μm
Finger length : 8.5mm
Interdigital quantity : 30 pairs
Packing : 12 pieces/box
Sheet resistance ：≤ 6 ohm/sq(4 point probe)
The conductor layer structure : Indium-Tin-Oxide (ITO) film
The thickness of ITO film : 2100Å ±50Å
Substrate: Sodium calcium glass size : 15mm×20mm thickness: 0.7mm
Light transmittance : >84%
Coating process : Magnetron sputtering
Line width : 80μm
Line spacing : 80μm
Finger length : 8.5mm
Interdigital quantity : 30 pairs
Packing : 12 pieces/box
The electrode has large pads, so operation is easy. This product can be used as core part of biological, medical and optical sensors.it is widely used in important fields such as biomedical testing, online environmental monitoring, food safety testing, and public safety.
You can enter our Amazon store from here to purchase and order samples.
